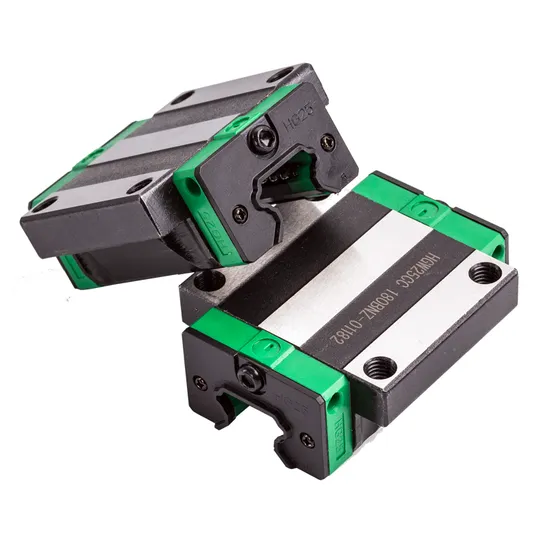

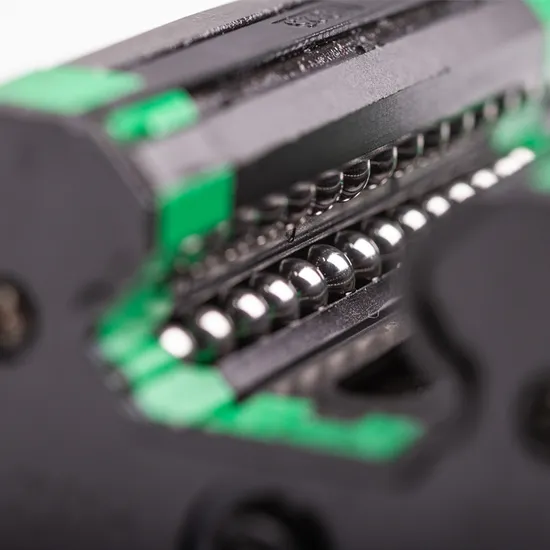

HGH Linear Guide Rail Bearing Slide Block – High Precision LM30 Model
Product Parameters
| Bore Diameter (Inner) | 25 mm |
| Outer Diameter | 35 mm |
| Thickness | 20 mm |
Description
Precision HGH linear guide rail bearing slide block ensures smooth and accurate linear motion. Ideal for industrial automation, CNC machines, and precision equipment requiring reliable guidance and high load capacity in compact design.
Basic Info.
Related Products
Specifications
| Bearing Type | Linear Motion Block |
| Rail Compatibility | MGN12C, MGN12H, MGN15C, MGN15H |
| Brand | Hiwin/PMI/Tbi/Abba/Bdl |
| Structure | Ball Block Slide |
| Application | Linear Guide Rail System |
Description
Precise linear motion block compatible with MGN12C, MGN12H, MGN15C, and MGN15H rails. Designed for smooth sliding performance in industrial automation and CNC applications. Made by leading brands including Hiwin, PMI, Tbi, Abba, and Bdl. Ideal for high-load and high-precision environments.
Specifications
| Bore Diameter | 45 mm |
| Outer Diameter | 80 mm |
| Thickness | 30 mm |
| Model | HGL45CA |
| Type | Linear Guide Rail Slider |
Introduction
Premium linear guideway bearing designed for smooth, high-precision motion control. The HGL45CA slider ensures durability and performance in industrial applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Series | MGW Mini Linear Series |
| Compatible Brands | HIWIN, PMI, TBI, ABBA, BDL |
| Models Included | MGW7C, MGW7H, MGW9C, MGW9H |
| Function | Linear Motion Block Slide |
| Element Type | Ball Block |
Description
Compact linear guide sliders from the MGW series offer high precision and smooth motion. Compatible across leading brands like HIWIN, PMI, and TBI, these blocks (MGW7C/7H/9C/9H) ensure reliable performance in tight spaces.
Specifications
| Bore Diameter | 25mm |
| Outer Diameter | 50mm |
| Thickness | 30mm |
| Model | HGL25HA / HGL25CA |
| Compatibility | HGL25 Linear Guide Rail |
| Application | CNC Router, Linear Motion System |
Description
Original HIWIN linear carriage block ensures high precision and durability. Designed for HGL25 series rails, it delivers smooth motion and reliable performance in CNC and industrial automation applications.
Specifications
| Bore Diameter | 45-85 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial grade |
Description
Precision linear guide rail slider made in Japan by THK. Compatible models: HSR45A, HSR45A1UU, HSR45LA1UU, HSR55R, HSR65R, HSR85R. High durability, smooth motion, ideal for industrial automation and machinery applications requiring accurate linear movement.
Specifications
| Bearing Type | HGH20/HGW20 |
| Rail Length | 1000mm / 2000mm |
| Slider Model | HGR20 |
| Brand | HIWIN |
| Application | CNC Linear Motion |
| Compatibility | China Fit |
Description
High precision linear guide bearing set featuring HIWIN HGH20 and HGW20 sliders, compatible with HGR20 rails. Ideal for CNC machines requiring smooth sliding motion. Available in 1000mm and 2000mm rail lengths for flexible integration.
Product Parameters
| Bore Diameter | 20 mm |
| Outer Diameter | 34 mm |
| Thickness | 19 mm |
Description
Precision linear guide slider from HIWIN, HGW20HC flange type with upper and lower lock design. Part of the HG series, it ensures high assembly accuracy and smooth motion for industrial automation applications.
Specifications
| Bearing Type | Linear Guide Rail Slider |
| Model Compatibility | EGH25CA, EGH25SA, EGW25CA, EGW25SA, EGW30SA, EGW30CA |
| Rail Length | 3000 mm |
| Brand | China Brand BDL |
| Replacement For | HIWIN |
Description
High-quality linear guide rail slider set, compatible with HIWIN models. Features precision engineering for smooth motion and durability. Ideal for industrial automation and CNC applications requiring reliable linear movement over a 3000mm rail length.
Specifications
| Bearings Type | Linear Guide Rail |
| Model Number | EGH25SA |
| Material | Chrome Steel |
| Accuracy Class | High Precision |
| Load Type | Radial and Axial |
| Sealing Type | Double Sealed |
Introduction
High-quality linear guide rail set EGH25SA, ideal for industrial machinery requiring smooth motion and durability. Made of chrome steel with high precision and double sealing for reliable performance.
Specifications
| Model | HGW45CC / HGW45HC |
| Brand | HIWIN Equivalent |
| Type | Linear Guide Rail and Block |
| Material | High-Carbon Steel |
| Replacement | 100% Interchangeable |
Description
High-precision linear guides designed as direct replacements for HIWIN HGW45CC and HGW45HC models. Ensures smooth motion, durability, and exact fit in industrial automation systems.
Product Parameters
| Inner Diameter | 20-25 mm |
| Outer Diameter | Varies by model |
| Thickness | Standard industrial size |
Description
High-quality linear guides compatible with Hiwin HGW20CC, HGW20HC, HGW25CC, HGW25HC models. Factory direct supply ensures 100% replaceability and reliable performance for industrial automation applications.
Specifications
| Model | EGW Series (25SA, 15SA, 15CA, 20SA, 20CA) |
| Rail Type | Linear Guide Rail Slider |
| Compatibility | 3D Printer, Stepper Motor Systems |
| Brand | HIWIN |
| Inner Diameter | Varies by Model |
| Outer Diameter | Varies by Model |
| Thickness | Varies by Model |
Introduction
Precision HIWIN EG series linear guides offer smooth motion and high load capacity. Ideal for 3D printers and automation equipment. Models include EGW25SA, EGW15SA, EGW15CA, EGW20SA, and EGW20CA.
