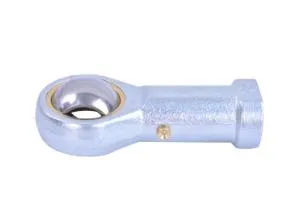

IKO THK LME PHS-16 Ball Joint Rod End Bearing High Load Capacity
Specifications
| Inner Diameter | 16 mm |
| Outer Diameter | 28 mm |
| Thickness | 20 mm |
Description
IKO THK Ball Joint Rod End Bearing Lme Phs-16 is designed for precision motion control, offering smooth articulation and high load capacity in compact spaces.
Basic Info.
